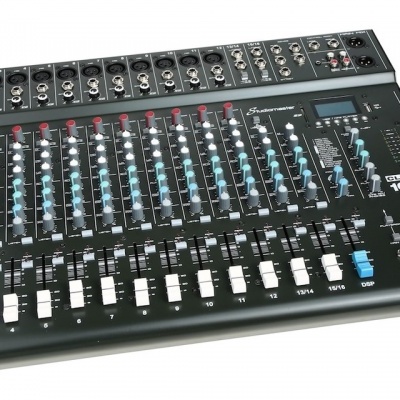

Mesa de mistura 16 Canais
16 inputs: 12 mic channels, 2 stereo channels
3 Auxiliary busses for monitoring and internal/external effects processing
Professional balanced outputs
High quality microphone pre amps with enhanced compression and gain controls and 3 band EQ on all microphone channels
60mm smooth faders
PFL and Mute control on every channel
16 in built DSP effects
Foot switch socket for DSP on/off control
Bluetooth playback connectivity
USB/SD media player and recorder
Internal power supply
Inputs: 16
Mic Inputs: 12
Stereo Inputs: 2
Mic Gain Range: 6dB to 50dB
Line Gain Range: 10dB to 34dB
EIN: -100dB
Frequency Responce: 10Hz – 20kHz (+1/-3dB)
THD Mic Channel: <0.1%
Signal to Noise Ratio: 80dB
Output Levels: Max +26dB (Bal), +20dB (unBal)
EQ: Hi 12kHz, Mid 2.5kHz, Lo 45Hz, Lo cut 80Hz
USB/SD: MP3 Audio playback
Record: To USB drive or SD card (128kbps mono)
DSP Effects: 16 DSP effects
Power Requirements: 100V – 240V ~
Dimension W*H*D: 525 x 80 x 390 (mm)
