COLUNA 10" AMPLIFICADA 2000W
TRUESONIC 3 SERIES
2.000 watts de potência biamplificada, drivers recém-projetados e controles e configurações mais fáceis e satisfatórios - a nova linha TS3 não atende apenas às suas necessidades. Faz você repensar o que é possível.
Output Power: 2000 W peak (1300 LF + 700 HF) 1000 W continuous RMS (650 LF + 350 HF)
LF Driver: 10-inch (254 mm) LF driver, 2.5-inch (65 mm) high-temperature voice coil
HF Driver: 1.4-inch (35 mm) neodymium magnet HF driver with precision waveguide
Crossover: 2.5 kHz
Maximum SPL: 129 dB peak, 126 dB continuous (dB SPL @ 1 m)
Frequency Response: 54 - 20 kHz (+/- 3 dB)
Frequency Range: 48 Hz - 22 kHz (-10 dB)
Horn Coverage: 90° H x 60° V nominal
Equalization: Contour Switch Low and High Frequency +3dB Boost

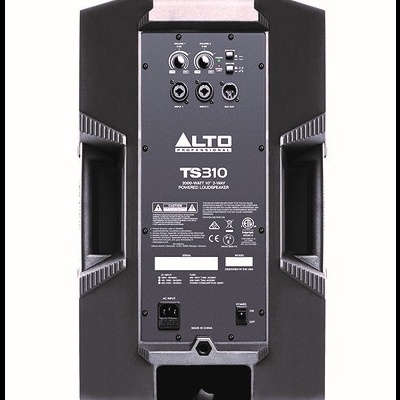

Connectors: (2) XLR/TRS 1/4” (6.35 mm) combo inputs, (1) XLR link output, (1) IEC power cable input
Controls: (2) Volume, Power on/off switch, Contour switch, Ground-Lift switch
Indicators: 2 x Power LED (front and rear), Clip limiter LED
Protection: Electronic clip, Thermal and transducer overdrive protection
Power Connection: IEC with Mains Fuse
AC Voltage Input: 100,110-120,220–240 V, 50/60 Hz

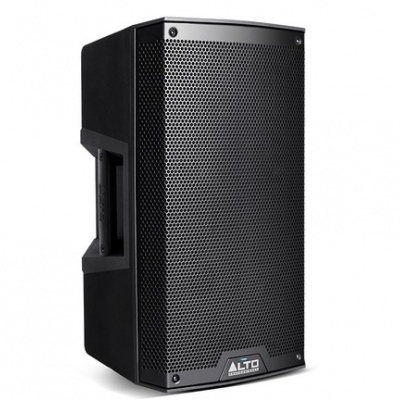

Enclosure: Trapezoidal, injection-molded, polypropylene enclosure, with perforated steel grille
Mounting/Installation: 36 mm standard pole mount, Wall or ceiling mount using TSB810 bracket, Flown application with integral M10 suspension points, Wedge monitor
Dimensions: (H x W x D): 20.6” x 12.6” x 11.8” / 524mm x 320mm x 300mm
Weight Net Weight: 26.1 lbs. / 11.9 kg.
