MICROFONE CONDENSADOR

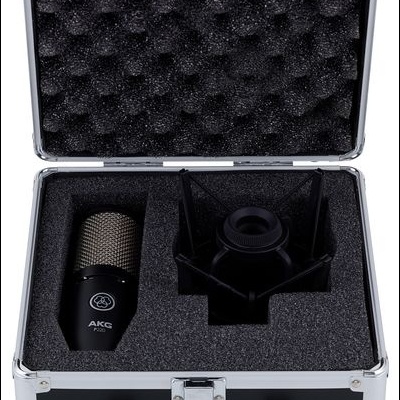

The P220 is a large-diaphragm true condenser microphone offering a warm and clear sound for lead vocals, acoustic guitar and brass instruments. A switchable bass-cut filter and attenuation pad make it perfectly suited for use on loud sound sources with sound pressure levels up to 155dB SPL. The rugged and roadworthy design also makes the P220 a perfect choice for on-stage applications.
General Specifications
Polar PatternCardioid
Audio frequency bandwidth20 - 20000 Hz
Equivalent noise level16 dB-A
Sensitivity20 mV/Pa
Signal to Noise78 dB-A
Preattenuation Pad-20 dB
Bass cut filter300 Hz - 12 dB/octave
Electrical impedance<= 200 Ohms
Recommended load impedance>= 1000 Ohms
Dimensions, Length165 mm - Diameter54 mm
Audio Output, TypeBalanced XLR
GenderMale, Contacts3-pin
Powering Interface, Voltage44 to 52 V - Current<= 3 mA
Application: Project Studio, Live Instrument
Instrument - Vocals - Piano / Strings - Horns / Woodwinds
